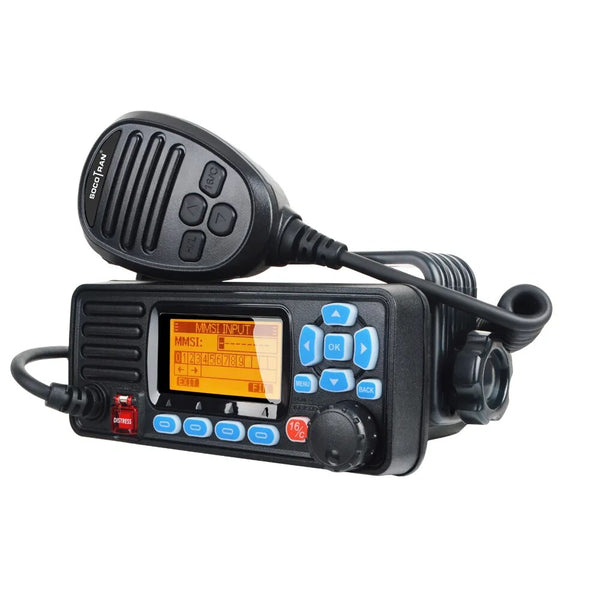

RS 509M


SKU: RS 509M K.J. Electronics Ltd

Sold Out

Secure Transaction

Protected Package

Fast Delivery

Small Size for Easy Installation

  NMEA Formats (In): RMC, GGA, GNS, GLL, VTG

  NMEA Formats (Out): DSC, DSE, RMC, GSA, GSV

  Dual Receiver, Independent DSC Dedicated Receiver

  Manually Input GPS Latitude and Longitude and Time

  IPX7 Waterproof Construction (1m Depth of Water for 30 Minutes)

  Speaker Vibration Draining Function

  Weather Channel Alarm

  Dual/Tri-watch Functions

  Scan: Normal Scan and Priority Scan

  DSC Call Reception and Transmission Records Can be Queried

  Standard NMEA Interface (RS-422 Protocol)

  Full Dot Matrix Display

  Channel Number Display Digits Selectable: 3 Digits(01B)/ 4 Digits(2001)

  Simple Combination of Arrow Keys and Programmable Soft Keys for Smooth Operation

  Support Latest Marine Channel Standards and DSC Protocol Standards.

       DSC Distress Cals in 11 Categories. All DSC Calls in 3 Security Categories



  Frequency: TX: 156.000-162.000MHz, RX: 156.000-163.425MHz

  RF Power: 25W/1W

  Channel Group: USA,INT,CAN

  Modulation Mode: 16K0G3E(FM), 16K0G2B(DSC)

  Frequency Stability: ±5ppm

  Power Supply: DC13.8V (±15%)

       Channel Spacing: 25kHz

       Operating Temperature: -20℃~+60℃

       Antenna Impedance: 50Ω

       Output Impedance (Audio): 4Ω

  Dimensions (WxHxD): 155×68×86mm

  Weight: 721g
